![SMART X960RC - Energiezähler - Eastron [BILD] - 2023](https://206.wpcdnnode.com/energymetershop.com/wp-content/uploads/2025/02/smart-x960rc-energiezahler-eastron-bild-2023-150x150.png)
![SMART X960RC - Energiezähler - Eastron [BILD] - 2023](https://206.wpcdnnode.com/energymetershop.com/wp-content/uploads/2025/02/smart-x960rc-energiezahler-eastron-bild-2023.png)

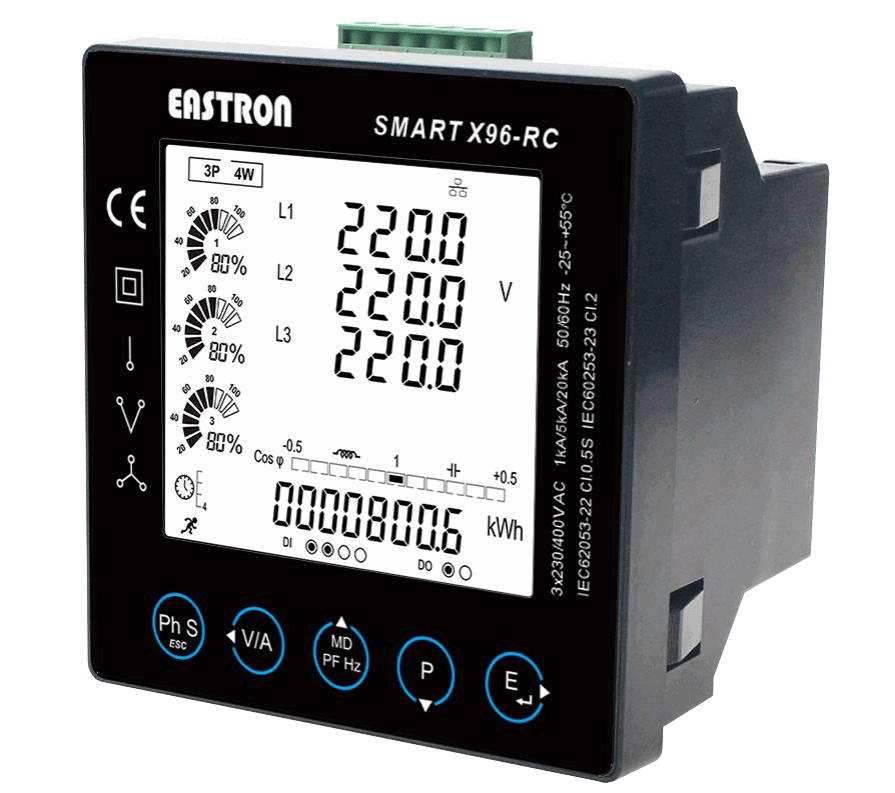

SMART X96-RC-MID
SKU:
115-20000-1003
€253,54
Excl. VAT
- Via Rogowski coil(s) in 1- and 3-phase networks
- Pulse • M-bus • Modbus RTU (RS485)
- 96mm x 96mm front mounting
Specifications
Downloads
Description
Returns Policy
Specifications
Product
| Weight | 0,340 kg |
|---|---|
| Number of phases | 1 Phase, 3 Phases |
| Dimensions | 96x96mm |
| Connecting current | Rogowski coil |
| Communication | Modbus RTU (RS485), Pulse |
| Certification | MID B+D |
| Accuracy class | B |
| Mounting type | Panel mounted |
| Manufacturer | Eastron |
| Length | 96mm |
| Width | 96mm |
| Height | 70mm |
| Country of origin | China |
| HS code | 90303100 |
Parameters
| Voltage L/N (V) |
|---|
| Voltage L/L (V) |
| Current (A) |
| Frequency (Hz) |
| Active power (kW) |
| Reactive power (kVAr) |
| Apparent power (kVA) |
| Power Factor (Cosine Phi) |
| Import of active energy (kWh) |
| Export of active energy (kWh) |
| Total active energy (kWh) |
| Import reactive energy (kVArh) |
| Export reactive energy (kVArh) |
| Total reactive energy (kVArh) |
| Maximum current drawn (MD A) |
| Maximum power consumed (MD kW) |
| Voltage harmonics up to the 63rd |
| Current harmonics up to the 63rd |
| Phase sequence indication |
Downloads
Datasheet
Datasheet – SMART X96-RCDescription
Measure and display multi-rate power consumption or yield of both single and three-phase networks. The SMART X96-RC is perfect for this function. This energy meter can be connected indirectly via Eastron Rogowski coils of type ESCT-RC45-500A, ESCT-RC60-500A, ESCT-RC100-1000A, ESCT-RC150-3000A, ESCT-RC200-6000A and ESCT-RC240-10000A. Measured values, both import and export, are displayed on the backlit LCD. The SMART X96-RC is a front-mounted (96mm x 96mm) energy meter that has pulse output and M-bus and Modbus RTU (RS485) connections. Its MID B+D certification makes this energy meter excellent for invoicing purposes.Returns Policy
The product must be returned undamaged and in its original condition, including the original box. Always use an outer box to prevent damage to the original packaging. Make sure the return form is enclosed; returns without a return form cannot be processed.
The costs of returning the product are for your own account. The product must be returned within 14 days of receiving it. Once the return has been received, we will refund the amount due for the product to your account within 14 days.
Exceptions
Unfortunately, it is only possible to return kWh meters when they are unused. This is because it is not possible to reset the meters, which makes the product unsellable when returned. Of course, you can return your kWh meter in case of a defect. We will examine your kWh meter and deliver a new one if necessary.
