![SDM630MCT-LoRa - Energiezähler - Eastron [BILD] - 2023](https://206.wpcdnnode.com/energymetershop.com/wp-content/uploads/2024/04/SDM630MCT-LoRa-Energiezahler-Eastron-BILD-2023-150x150.png)
![SDM630MCT-LoRa - Energiezähler - Eastron [BILD] - 2023](https://206.wpcdnnode.com/energymetershop.com/wp-content/uploads/2024/04/SDM630MCT-LoRa-Energiezahler-Eastron-BILD-2023.png)

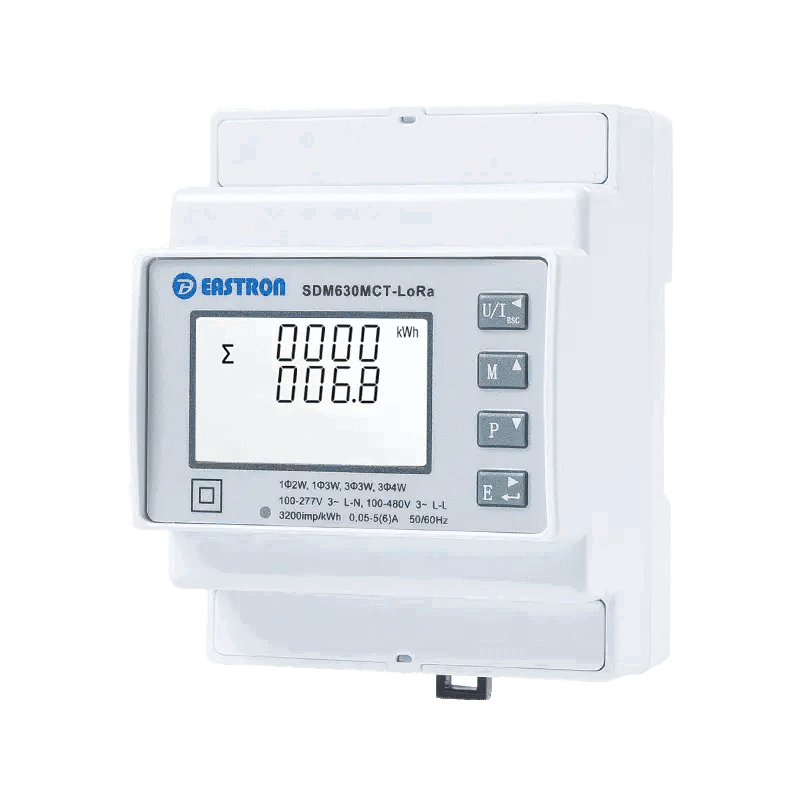

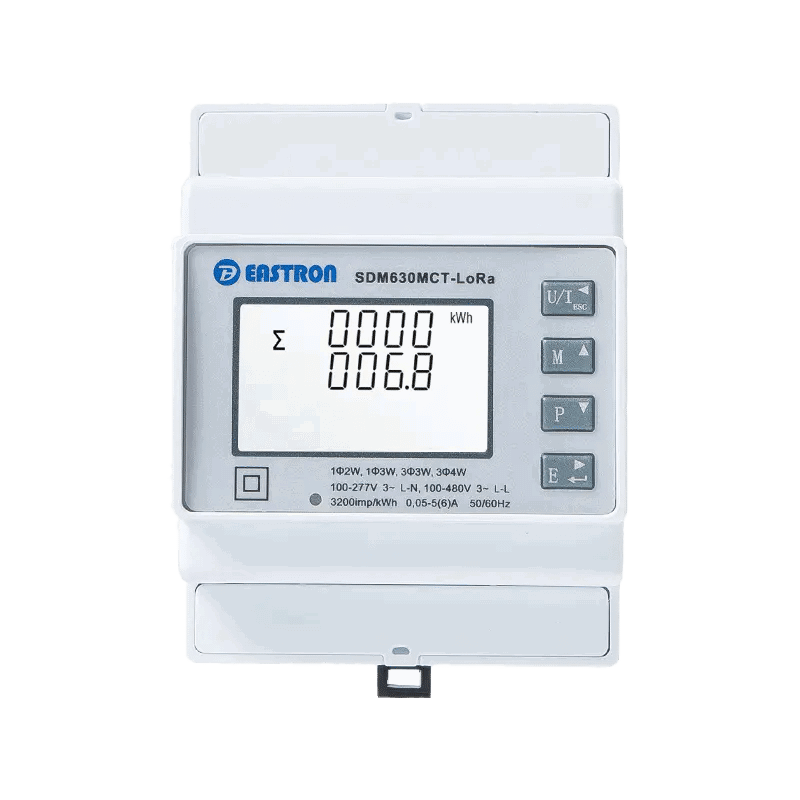

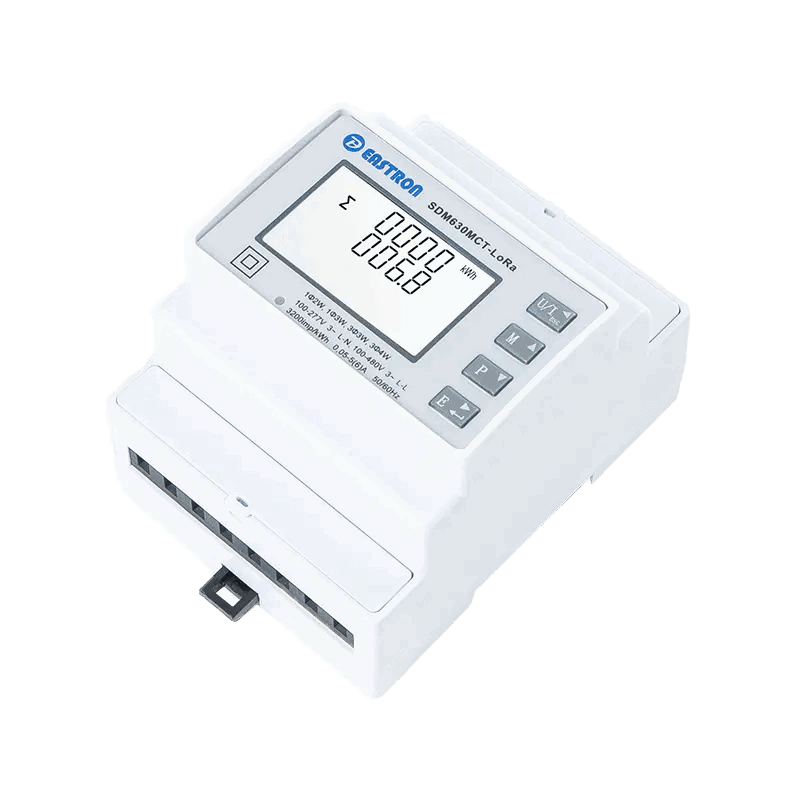

SDM630MCT-LoRaWAN-MID
SKU:
115-63040-0212
€143,16
Excl. VAT
- Indirect (1/5A) in 3-phase networks
- Pulse • LoRaWAN
- 4 modules (72mm)
Specifications
Downloads
Description
Returns Policy
Specifications
Product
| Weight | 0,300 kg |
|---|---|
| Number of phases | 3 Phases |
| Dimensions | 4 modules, 72mm |
| Connecting current | 1A Indirect, 5A Indirect |
| Communication | LoRaWAN |
| Certification | MID B+D, CE |
| Accuracy class | B |
| Mounting type | DIN-rail mounted |
| Manufacturer | Eastron |
| Width | 72 |
| HS code | 90303100 |
| Country of origin | China |
Parameters
| Voltage (V) |
|---|
| Current (A) |
| Voltage THD (U%THD) |
| Current THD (I%THD) |
| Frequency (Hz) |
| Power Factor (Cosine Phi) |
| Maximum current draw (MD A) |
| Maximum power consumed (MD kW) |
| Active power (kW) |
| Reactive power (kVAr) |
| Apparent power (kVA) |
| Import of active energy (kWh) |
| Export of active energy (kWh) |
| Total active energy (kWh) |
| Import reactive energy (kVArh) |
| Export reactive energy (kVArh) |
| Total reactive energy (kVArh) |
Downloads
Datasheet
Datasheet – SDM630MCT-LoRaWAN-MIDDescription
Measure and display the power consumption or yield of three-phase networks. The SDM630MCT-LORAWAN-MID is ideal for that. This energy meter can be connected indirectly (1A / 5A). The measured values, both import and export, can be read on the backlit LCD screen.
The SDM630MCT-LoRaWAN-MID is a 4 module wide (72mm) energy meter that comes with a pulse output and LoRaWAN communication. Thanks to the MID B+D certification, this energy meter is ideal for re-invoicing.
Returns Policy
The product must be returned undamaged and in its original condition, including the original box. Always use an outer box to prevent damage to the original packaging. Make sure the return form is enclosed; returns without a return form cannot be processed.
The costs of returning the product are for your own account. The product must be returned within 14 days of receiving it. Once the return has been received, we will refund the amount due for the product to your account within 14 days.
Exceptions
Unfortunately, it is only possible to return kWh meters when they are unused. This is because it is not possible to reset the meters, which makes the product unsellable when returned. Of course, you can return your kWh meter in case of a defect. We will examine your kWh meter and deliver a new one if necessary.
