Home » Products » Current Transformers » ESCT-RJ345 – 630A/100mA

ESCT-RJ345 – 630A/100mA


SKU: 115-03345-0630
29,08
  • Primary 630A
  • 3 phases, each 31mm x 27mm
  • RJ12 for EasyClick
Specifications
Downloads
Description
Returns Policy

Specifications

Product

Weight 0,600 kg
Primary current

630A

Secondary current

100mA

Number of phases

3 Phases

Accuracy class

0.5

Certification

CE

Rail size

32mm x 27mm

Manufacturer

Eastron

Length

82mm

Width

142mm

Height

39mm

HS code

85043129

Country of origin

China

Downloads

Description

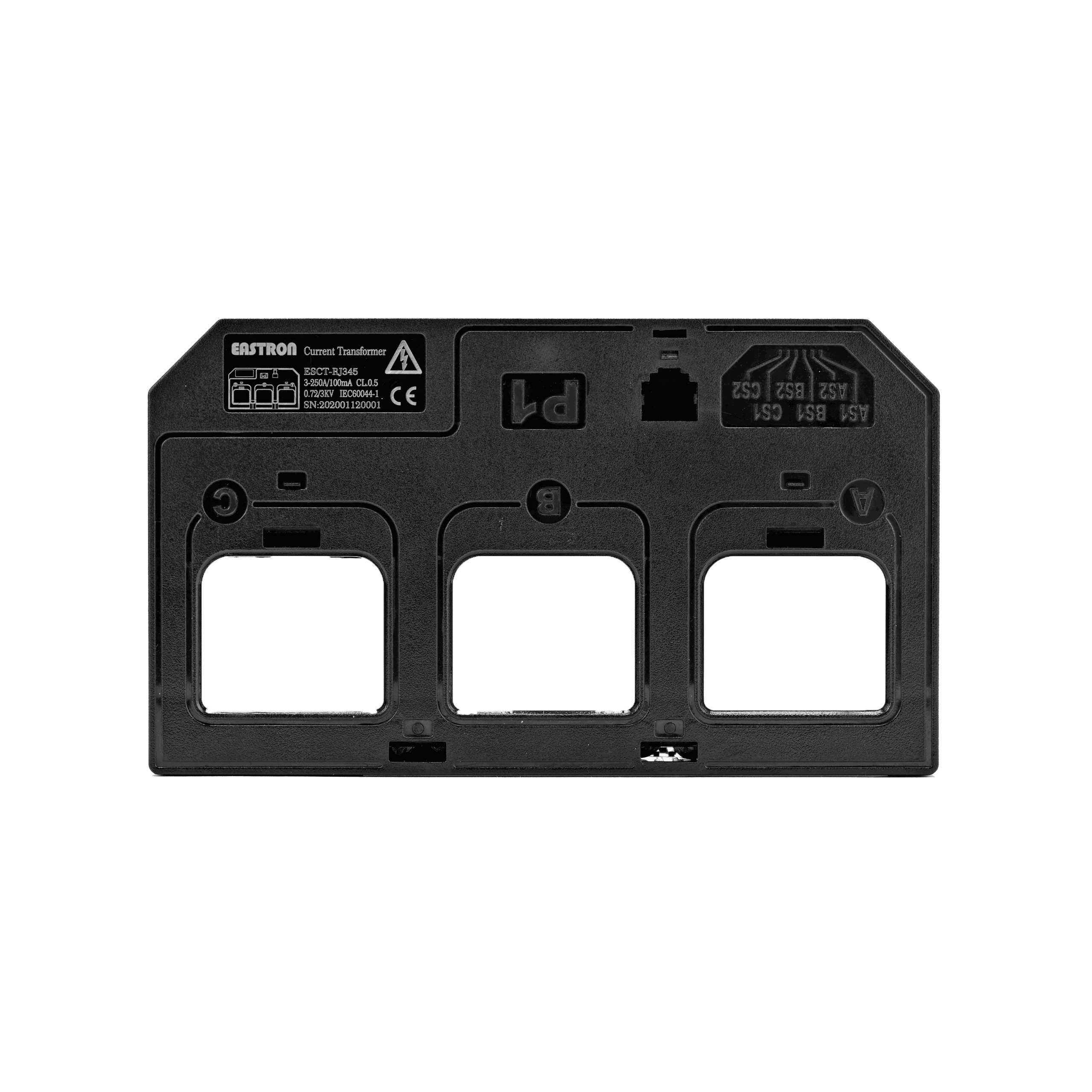

The ESCT-RJ345-630A is a 3-in-1 current transformer with a RJ12 connector. This makes it easy to connect to Eastron energy meters type SDM630MCT-ML-1-MID, SDM630MCT-ML-2-MID, SDM630MCT-ML-3-MID, SDM630MCT-ML-4-MID or SMART X96-5E-MID. Once connected, the ESCT-RJ345-630A has a measurement class of 0.5 and 1, a primary current rating of 630A and a secondary current rating of 100mA. Each phase has the following dimensions: 31mm x 27mm.

Returns Policy

The product must be returned undamaged and in its original condition, including the original box. Always use an outer box to prevent damage to the original packaging. Make sure the return form is enclosed; returns without a return form cannot be processed.

The costs of returning the product are for your own account. The product must be returned within 14 days of receiving it. Once the return has been received, we will refund the amount due for the product to your account within 14 days.

Exceptions

Unfortunately, it is only possible to return kWh meters when they are unused. This is because it is not possible to reset the meters, which makes the product unsellable when returned. Of course, you can return your kWh meter in case of a defect. We will examine your kWh meter and deliver a new one if necessary.
