![ESCT-RJ335 - Stromwandler - Eastron [BILD] - 2023](https://206.wpcdnnode.com/energymetershop.com/wp-content/uploads/2025/02/esct-rj335-stromwandler-eastron-bild-2023-150x150.png)
![ESCT-RJ335 - Stromwandler - Eastron [BILD] - 2023](https://206.wpcdnnode.com/energymetershop.com/wp-content/uploads/2025/02/esct-rj335-stromwandler-eastron-bild-2023.png)
Specifications
Downloads
Description
Returns Policy
Specifications
Product
| Weight | 0,500 kg |
|---|---|
| Primary current | 250A |
| Secondary current | 100mA |
| Accuracy class | 0.5, 1 |
| Certification | CE |
| Rail size | 21mm x 25mm |
| Manufacturer | Eastron |
| Length | 68mm |
| Width | 108mm |
| Height | 38mm |
| HS code | 85043129 |
| Country of origin | China |
Downloads
Datasheet
Datasheet – ESCT-RJ335Brochure
Brochure EasyClickDescription

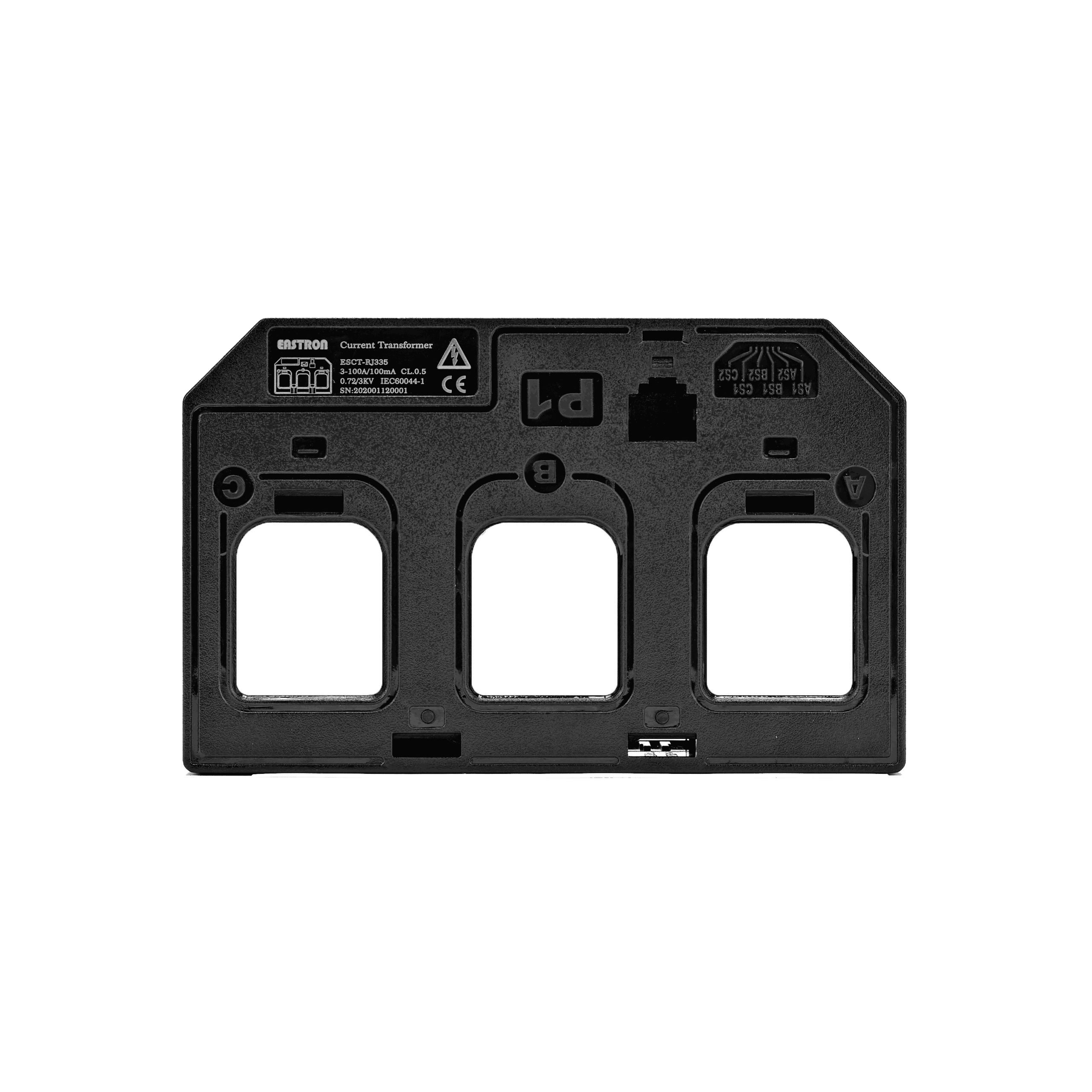

The ESCT-RJ335-250A is a 3-in-1 current transformer with a RJ12 connector. This makes it easy to connect to Eastron energy meters type SDM630MCT-ML-1-MID, SDM630MCT-ML-2-MID, SDM630MCT-ML-3-MID, SDM630MCT-ML-4-MID or SMART X96-5E-MID. Once connected, the ESCT-RJ335-250A has a measurement class of 0.5 and 1, a primary current rating of 250A and a secondary current rating of 100mA. Each phase has the following dimensions: 21mm x 25mm.Returns Policy
The product must be returned undamaged and in its original condition, including the original box. Always use an outer box to prevent damage to the original packaging. Make sure the return form is enclosed; returns without a return form cannot be processed.
The costs of returning the product are for your own account. The product must be returned within 14 days of receiving it. Once the return has been received, we will refund the amount due for the product to your account within 14 days.
Exceptions
Unfortunately, it is only possible to return kWh meters when they are unused. This is because it is not possible to reset the meters, which makes the product unsellable when returned. Of course, you can return your kWh meter in case of a defect. We will examine your kWh meter and deliver a new one if necessary.
Others also viewed these products
Loading…

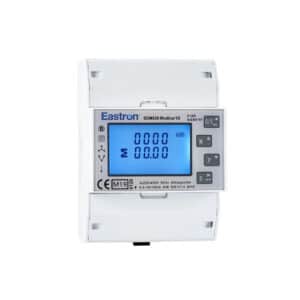

SDM630-Modbus-MID-V3
